SIMSCAN Portable 3D Laser Scanner

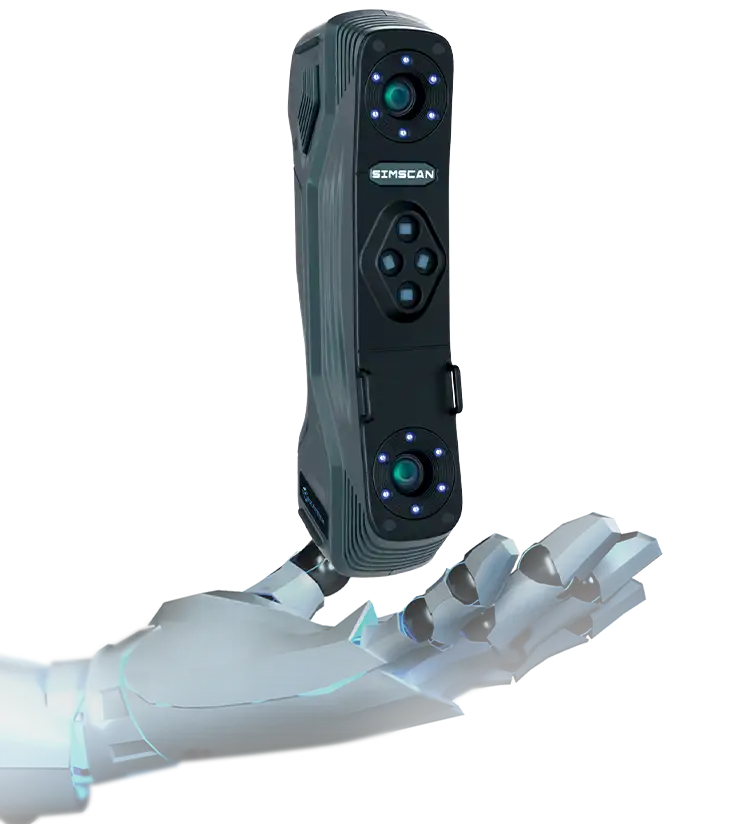

SIMSCAN, the only palm-sized portable 3D scanner in the market so far, is specially designed for 3D scanning narrow and hard-to-reach areas. Featuring full-metal housing, it is incredibly sturdy and reliable. SIMSCAN has become a disruptive innovation among professional 3D scanners due to its compact size, simplicity and robust performance. Its cutting-edge design also wins itself German Red Dot Award and China Design Silver Award. SIMSCAN performs high-quality 3D scanning regardless of any restrictions from the working environment. It is ideal for 3D scanning both narrow spaces and large-scale parts. Users can accurately capture every detail of objects and construct 3D models in a very short amount of time with the help of this metrology-grade 3D measurement instrument.
China Design Silver Award
Camera Frame Rate 120 fps
Camera Distance 130mm
Accuracy 0.020 mm
Net Weight 570 g

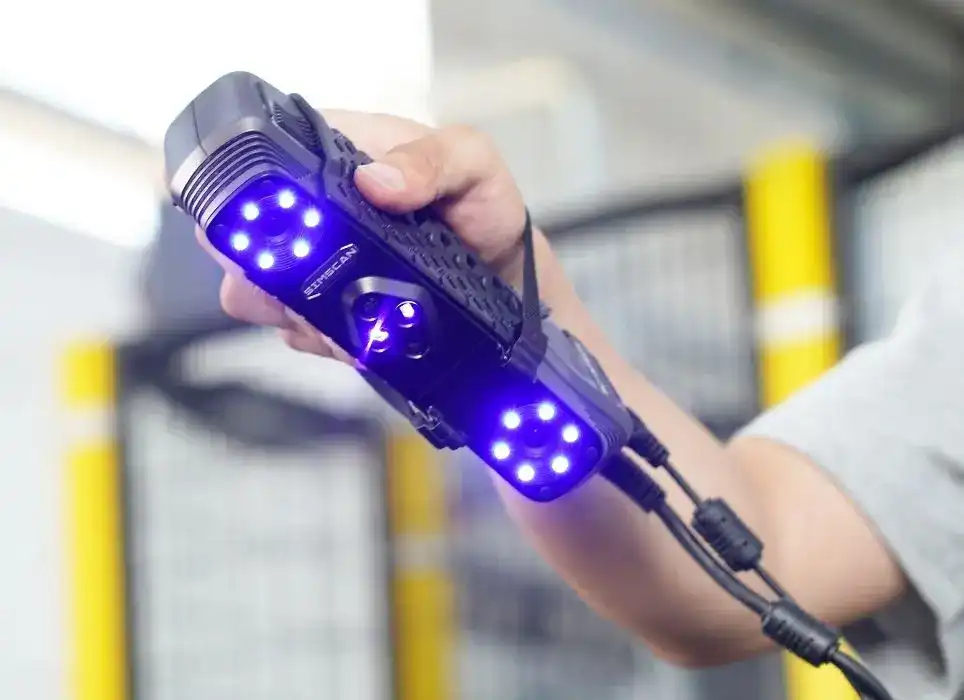

SIMSCAN’s full-metal housing provides solid protection and ensures extraordinary durability. Weighted only 570 g and sized 203 × 80 × 44 mm, SIMSCAN portable 3D scanner brings unparalleled simpleness for scanning anything with one hand.

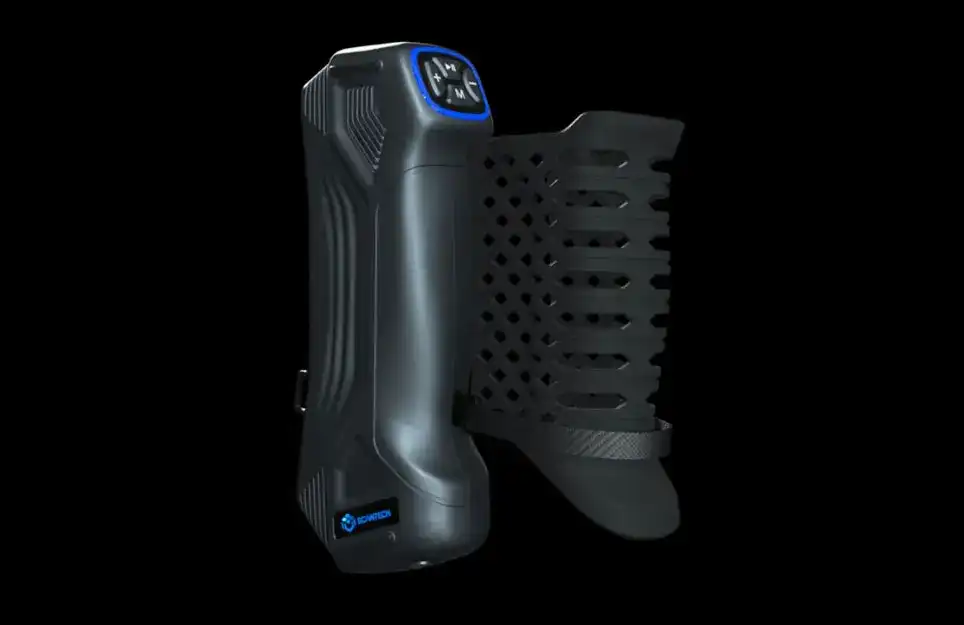

Because of its hollow structure, it dissipates heat more effectively. The 3D scanner is efficient at performing measurements with low power consumption. Thanks to its versatility, it can meet a wide range of needs of 3D measurements.
Narrow-space Measuring Booster

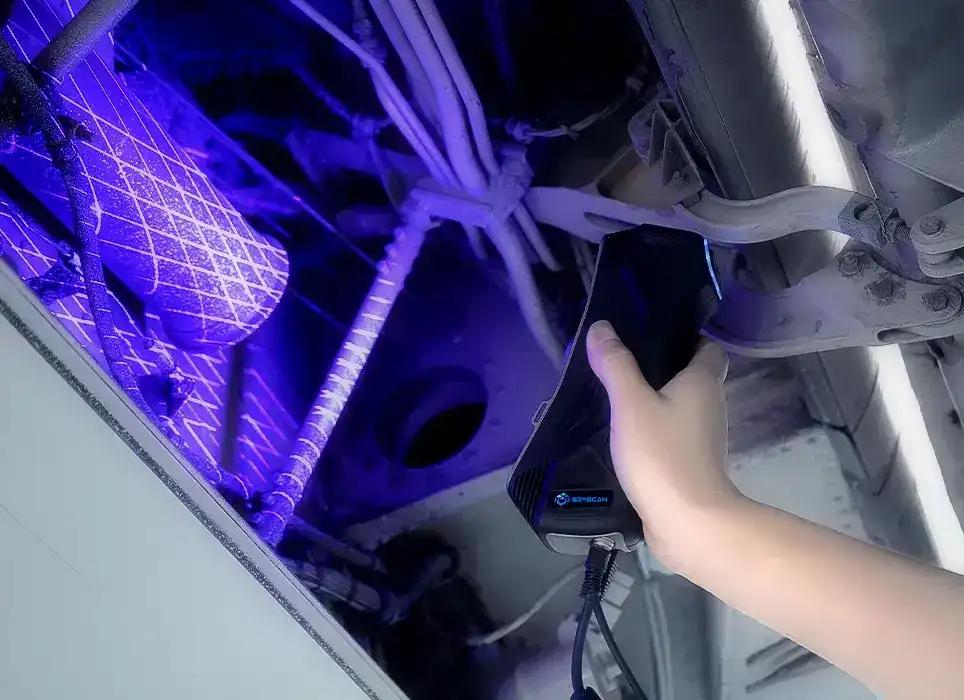

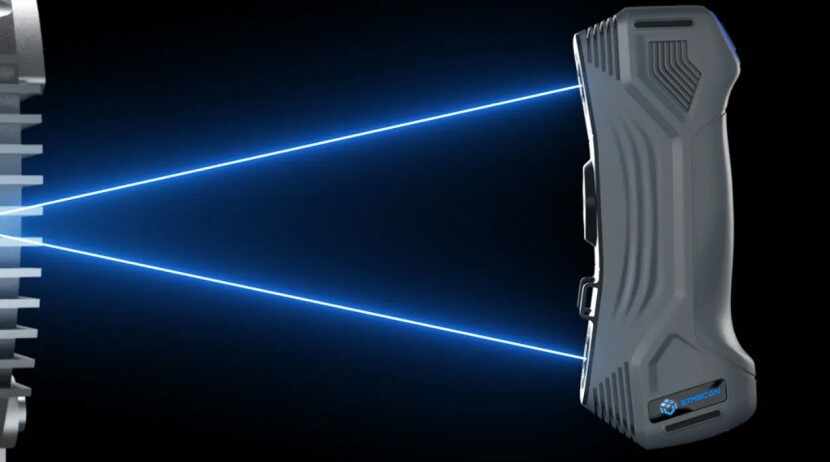

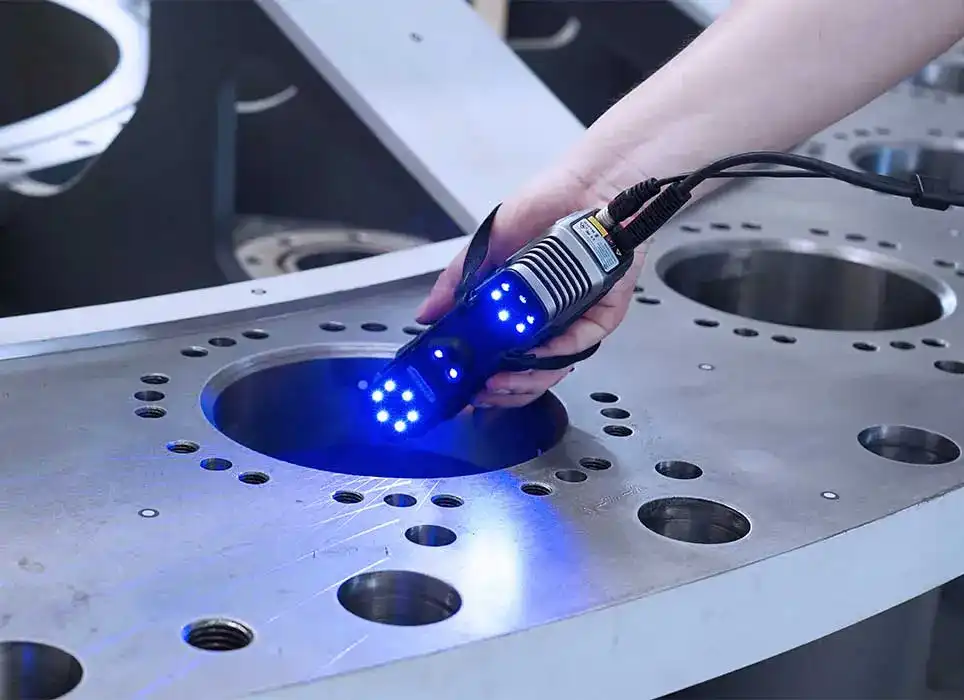

Compared with its competitors, SIMSCAN has a much shorter camera distance of 130 mm, which forms a steeper view angle to 3D scan narrow spaces. Therefore, SIMSCAN is more capable of capturing accurate and complete data in hard-to-reach areas like deep grooves and ensures users to capture full-field data.

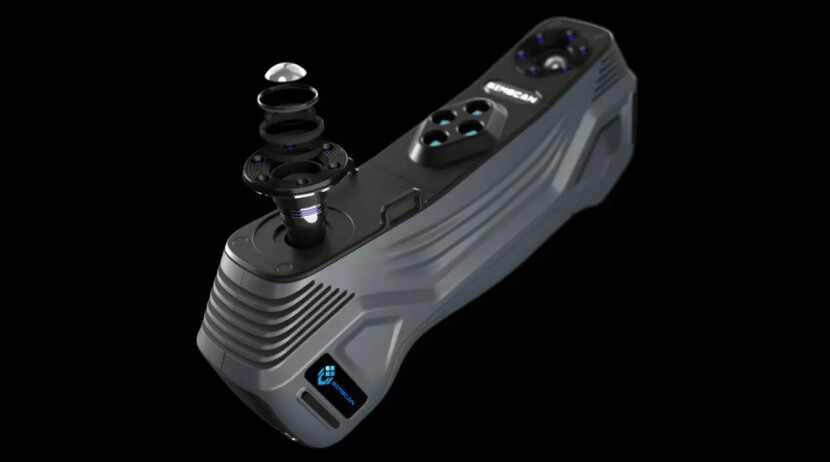

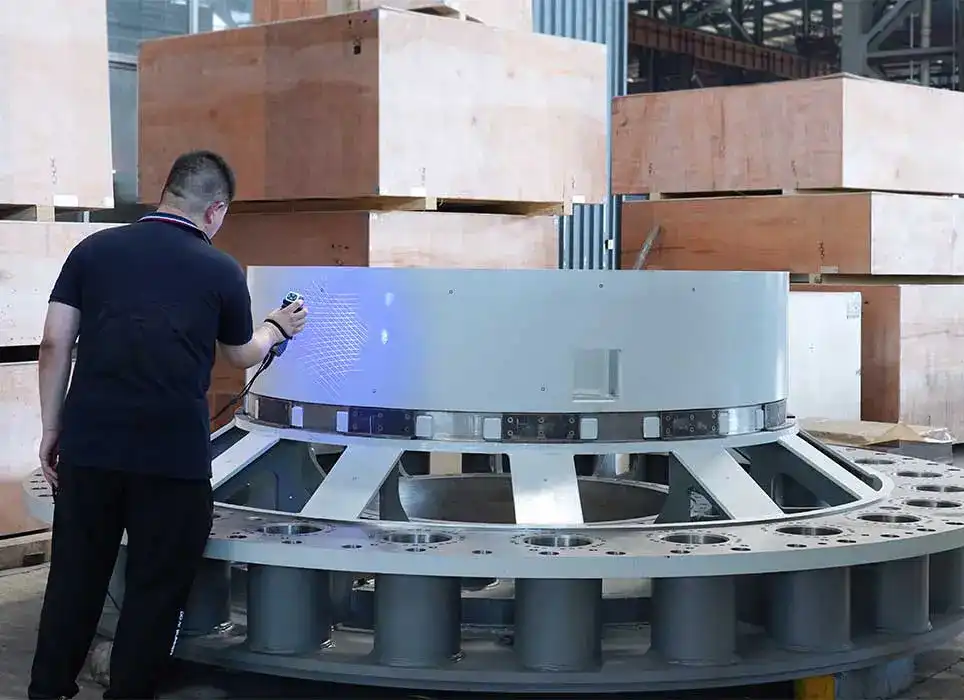

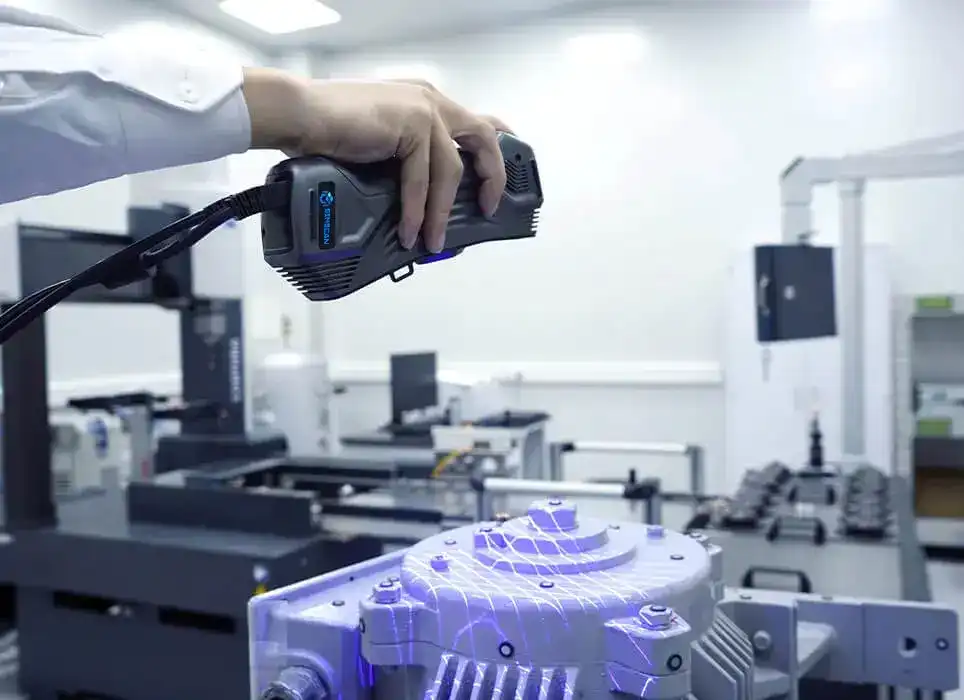

With its built-in HD cameras and three scanning modes, it realizes high-precision scanning with an accuracy up to 0.020 mm. It can accurately capture the 3D data of objects with complex surfaces or in confined areas.

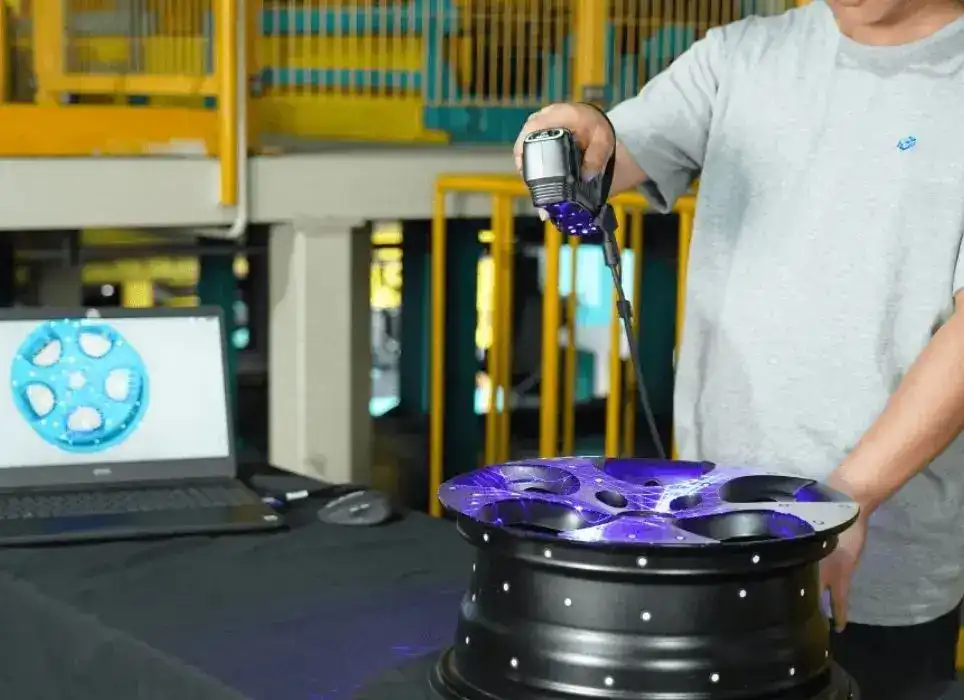

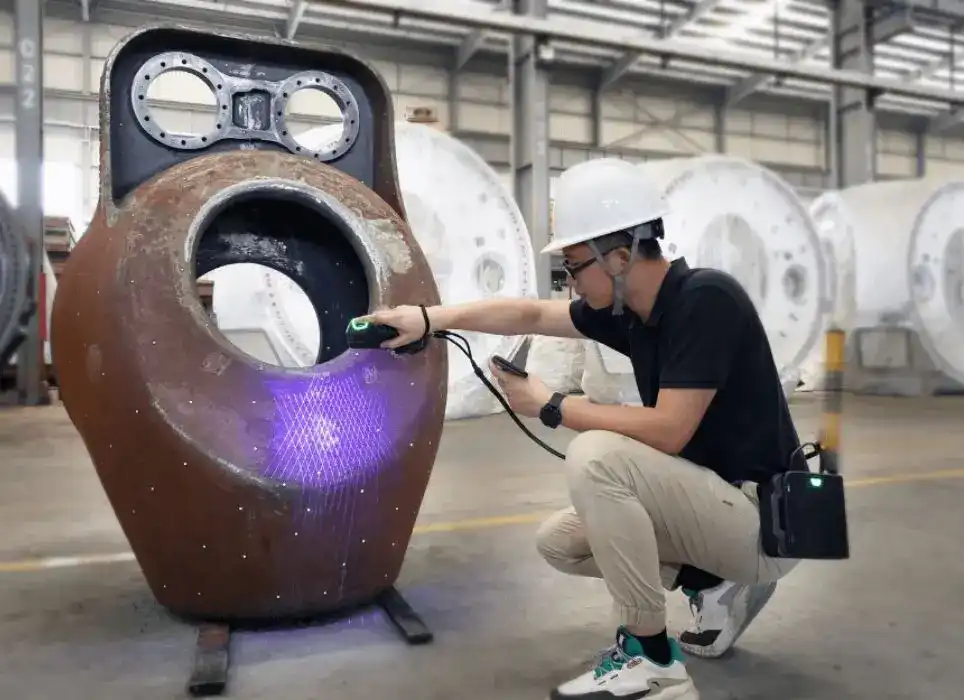

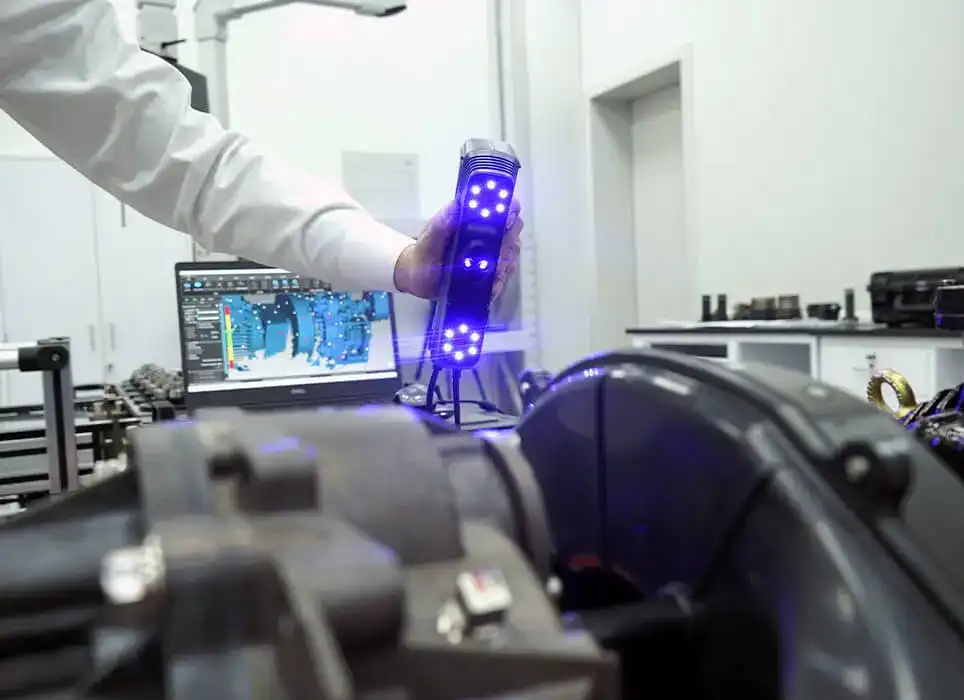

SIMSCAN boasts a compact size and excellent portability. No matter in narrow spaces or under huge objects, SIMSCAN portable 3D scanner can conduct 3D measurements anywhere and anytime. When paired with wireless communication link AirGo Pro, it supports mobile 3D scanning and data viewing for truly flexible, reliable, and effective measurement experiences.

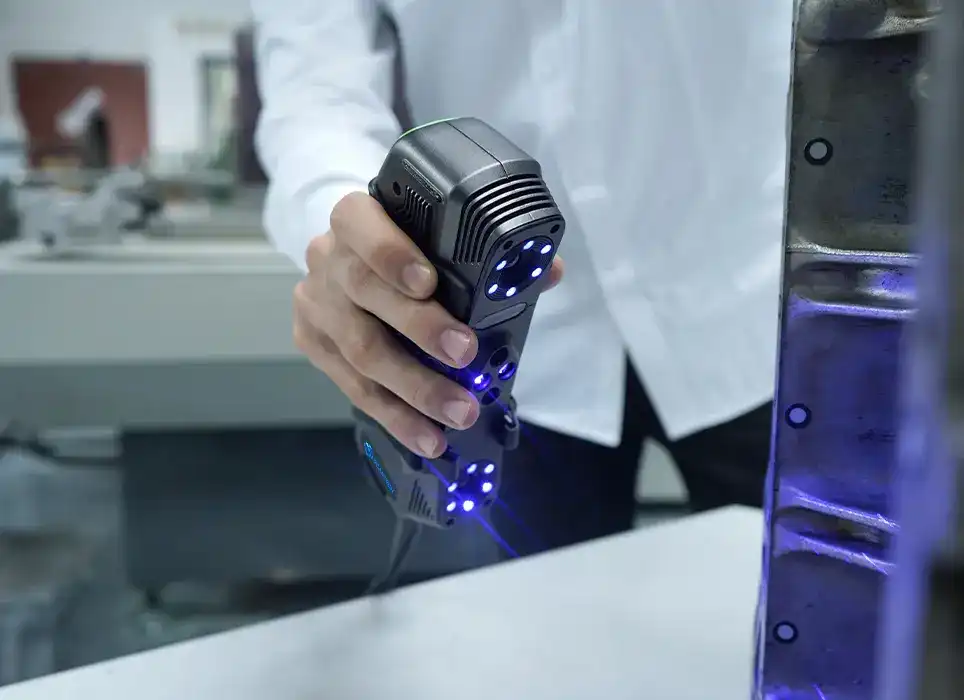

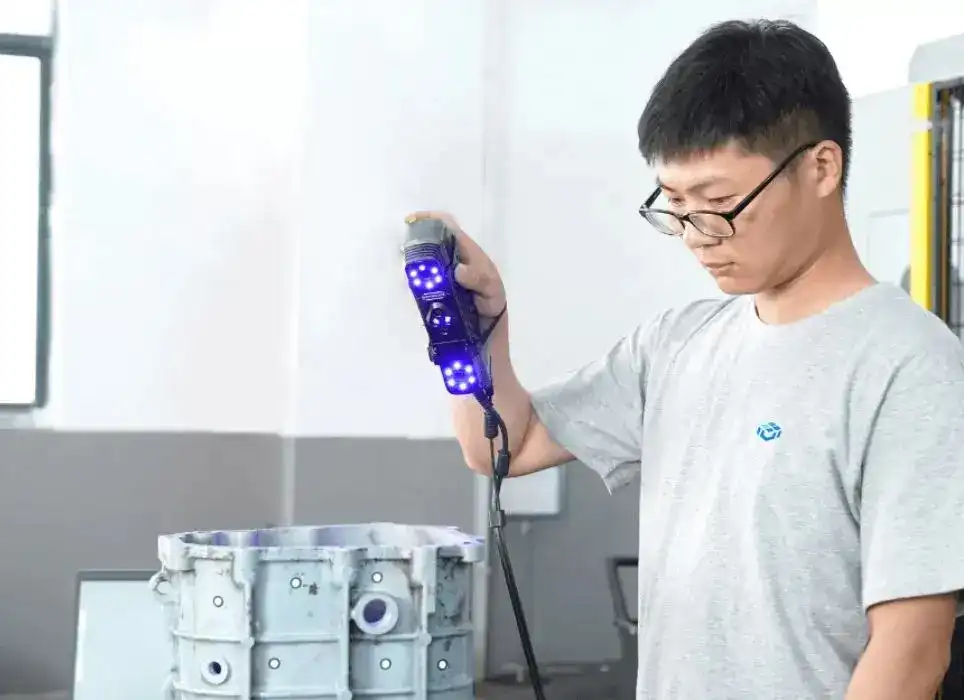

With its multifunctional buttons, users can switch between different modes at any time. Its single-handed operation allows flexible measuring and its ergonomic design makes it comfortable to use. Designed with an anti-slip housing and a strap, it is safe for users to scan in all directions freely.
Smooth 3D Experience

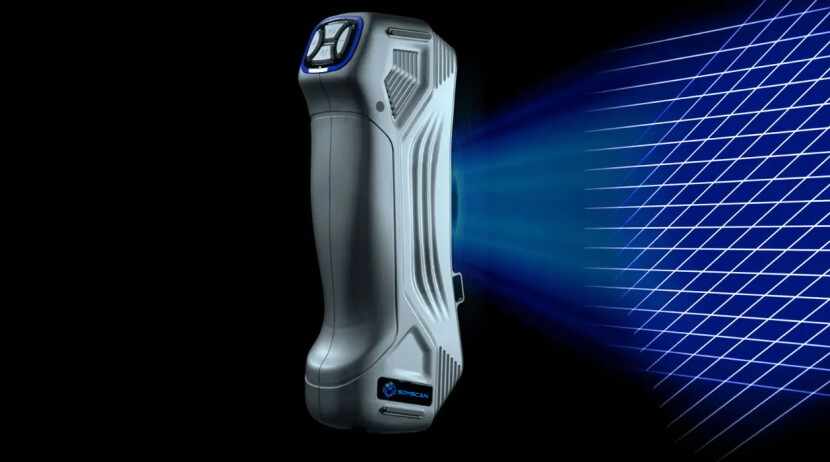

SIMSCAN can 3D scan objects with a rate up to 2.8 million measurement/s thanks to its sophisticated algorithm and a camera frame rate higher than most of its competitors. It is designed to offer users a smooth and efficient 3D digitizing experience.
Automated 3D Measurement

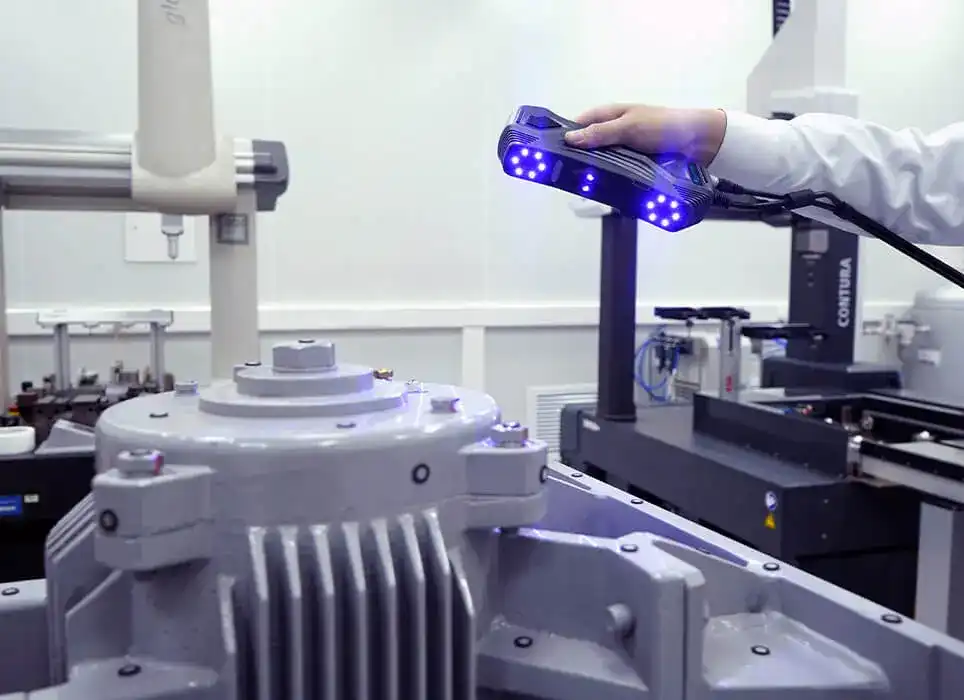

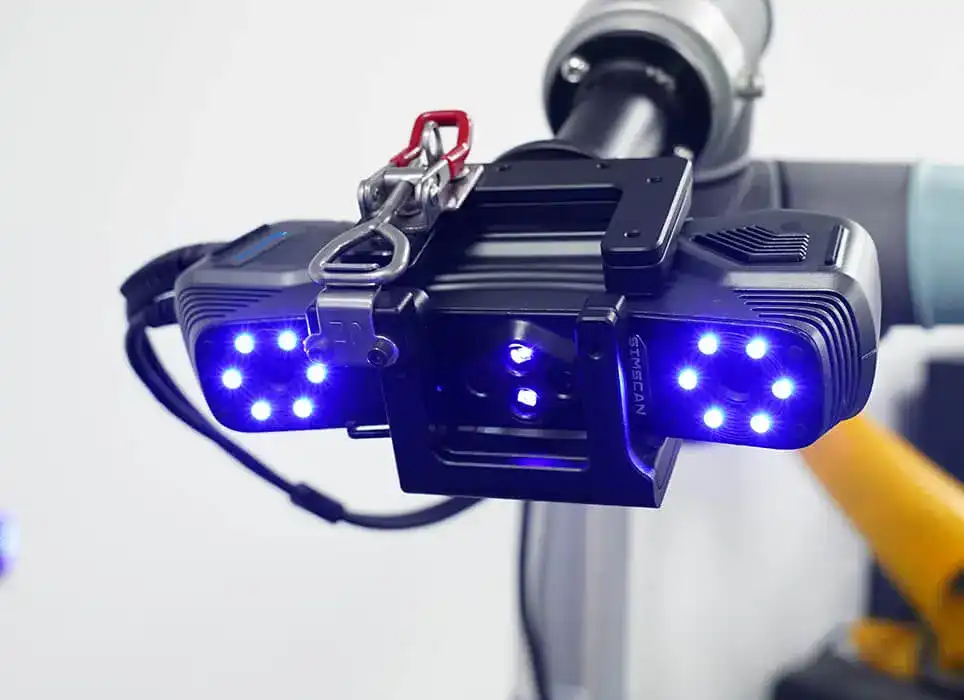

It can be paired with Scantech’s automated 3D measurement system to achieve non-stop measurements. Automated high-batch measurement overcomes the limitation of traditional methods and it significantly improves efficiency for all stages of manufacturing.
|Type||SIMSCAN 42||SIMSCAN 30||SIMSCAN 22|
|Scan mode||Ultra-fast scanning||17 blue laser crosses||11 blue laser crosses||7 blue laser crosses|
|Hyperfine scanning||7 blue parallel laser lines|
|Deep hole scanning||1 extra blue laser line|
|Accuracy(1)||Up to 0.020 mm|
|Scanning rate||Up to 2,800,000 measurements/s||Up to 2,020,000 measurements/s||Up to 1,250,000 measurements/s|
|Scanning area||Up to 700 mm × 600 mm||Up to 650 mm × 550 mm|
|Laser class||Class II (eye-safe)|
|Resolution||Up to 0.020 mm|
|Volume accuracy(2)||Standard||0.015 mm + 0.035 mm/m|
|Paired with MSCAN-L15||0.015 mm + 0.015 mm/m|
|Stand-off distance||300 mm|
|Depth of field||550 mm|
|Output formats||pj3, asc, igs, txt, mk2, umk, stl, ply, obj|
|Operating temperature range||-10℃ – 40℃|
|Interface mode||USB 3.0|
|Dimensions||203 mm × 80 mm × 44 mm|
|Patents||CN204329903U, CN104501740B, CN204854633U, CN204944431U, CN204902788U, CN105068384B, CN105049664B, CN204902784U, CN204902785U, CN106403845B, CN110030946B, CN111833392A, CN212300269U, CN211904059U, CN211696268U, CN306053019S, CN212606697U, CN111932465A, CN111694665A, CN306321502S, EP3392831A4|
(1) ISO 17025 accredited: Based on VDI/VDE 2634 Part 3 standard and JJF 1951 specification, probing error (size) (PS) performance is evaluated.
(2) ISO 17025 accredited: Based on VDI/VDE 2634 Part3 standard and JJF 1951 specification, sphere spacing error (SD) performance is evaluated.
Rigorous Calibration Services
SCANTECH has a dedicated and ISO 17025-accredited calibration laboratory. The laboratory is staffed with certified technicians to perform calibration, per the rules of ISO 17025 accreditation, for the 3D scanners we manufacture.
The calibration and acceptance test of the SIMSCAN 3D scanners are based on JJF 1951 specification and VDI/VDE 2634 standard. The 3D scanners of this lineup will be assigned fully traceable and internationally recognized accuracy certificates.
SIMSCAN Portable 3D Laser Scanner
Our metrology laboratory is committed to continuously improving the management system and product quality of Scantech to ensure that they comply with ISO/IEC 17025 standards. Our professional calibration team and well-trained service engineers, who have a deep understanding of the methods and software required for accurate calibration, are working hard to guarantee the reliability and high quality of products.
