With intelligent optical tracking measurement, TrackScan-P30 3D system delivers instant scanning without markers, greatly improving work efficiency and decreasing cost.
TrackScan-P30 3D System

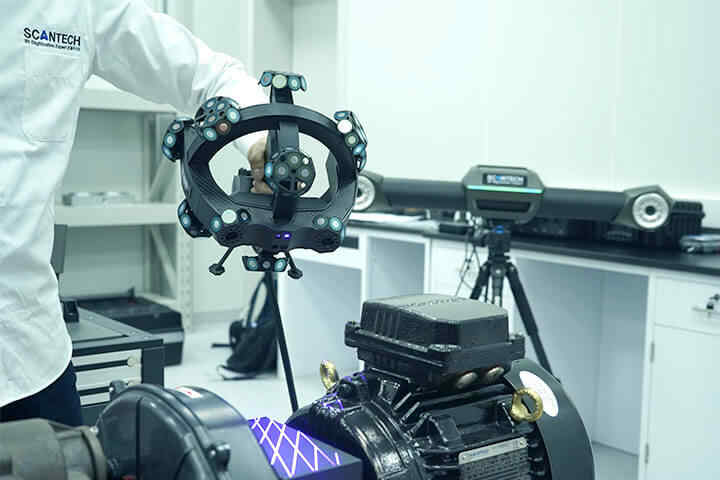

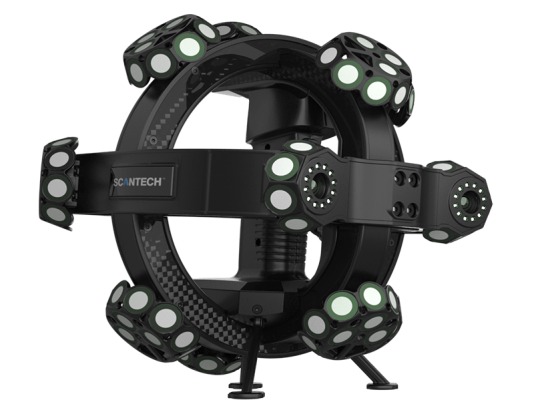

TrackScan-P30 3D system adopts intelligent optical tracking measurement technology and high-quality optical equipment. It carries out ultra-high precision dynamic 3D measurement without markers. This 3D system is widely applied to quality control, product development, reverse engineering, etc.
By freely switching multiple working modes, TrackScan-P30 caters to different scanning situations. 11 crossed blue laser lines enable ultra-fast scanning rate and smooth experience. 7 parallel blue laser lines work for detail capturing. Single blue laser line aims to fast collecting 3D data of deep holes and dead angle positions.

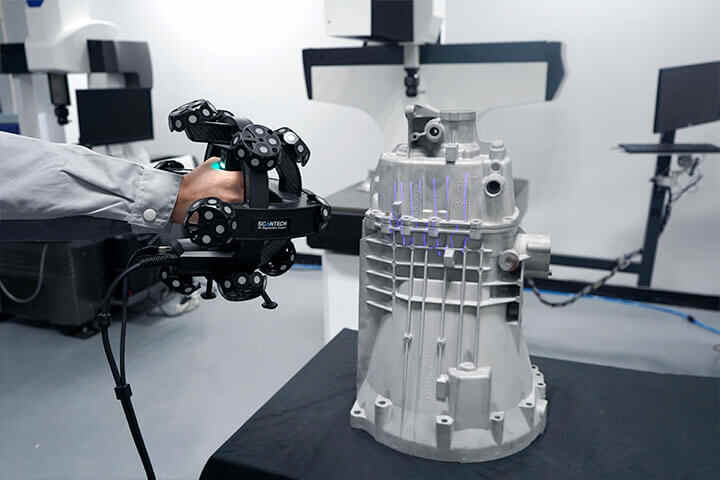

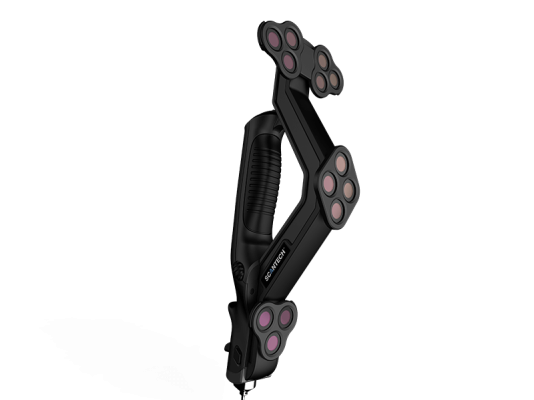

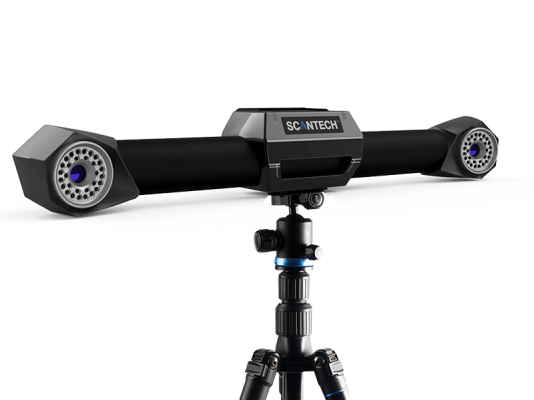

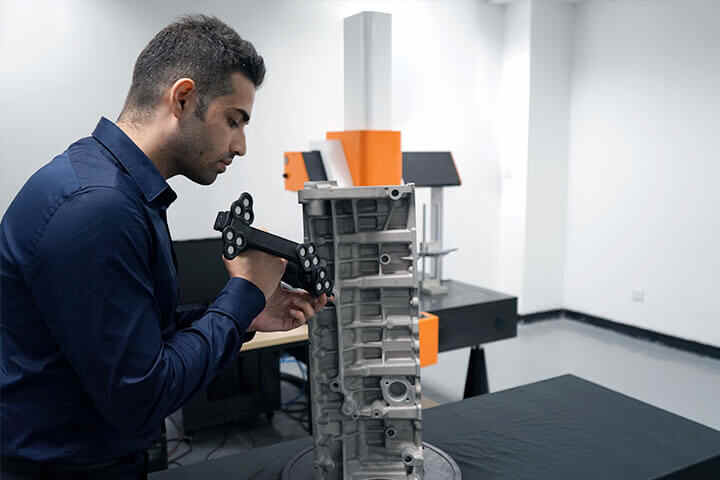

The equipped wireless portable CMM delivers flexible measurement, and precisely captures high-precision 3D data of gaps, hole positions, grooves and complex surface. By working with robot-arm, TrackScan-P30 can also realize intelligent online automated 3D inspection.

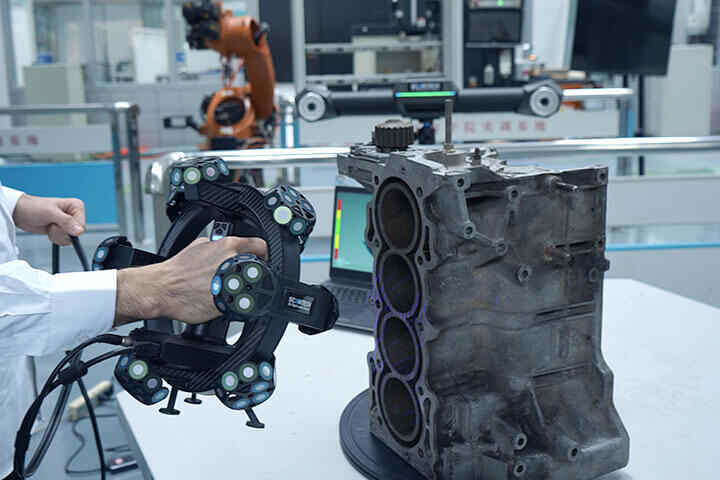

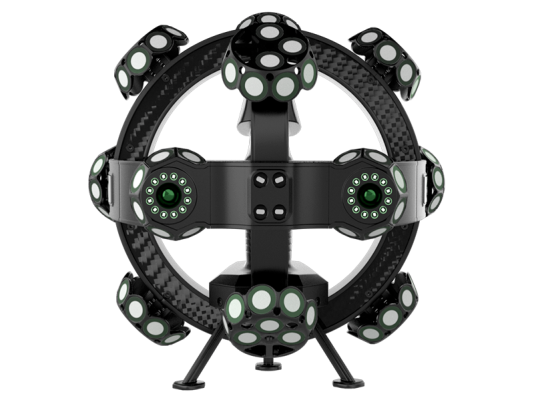

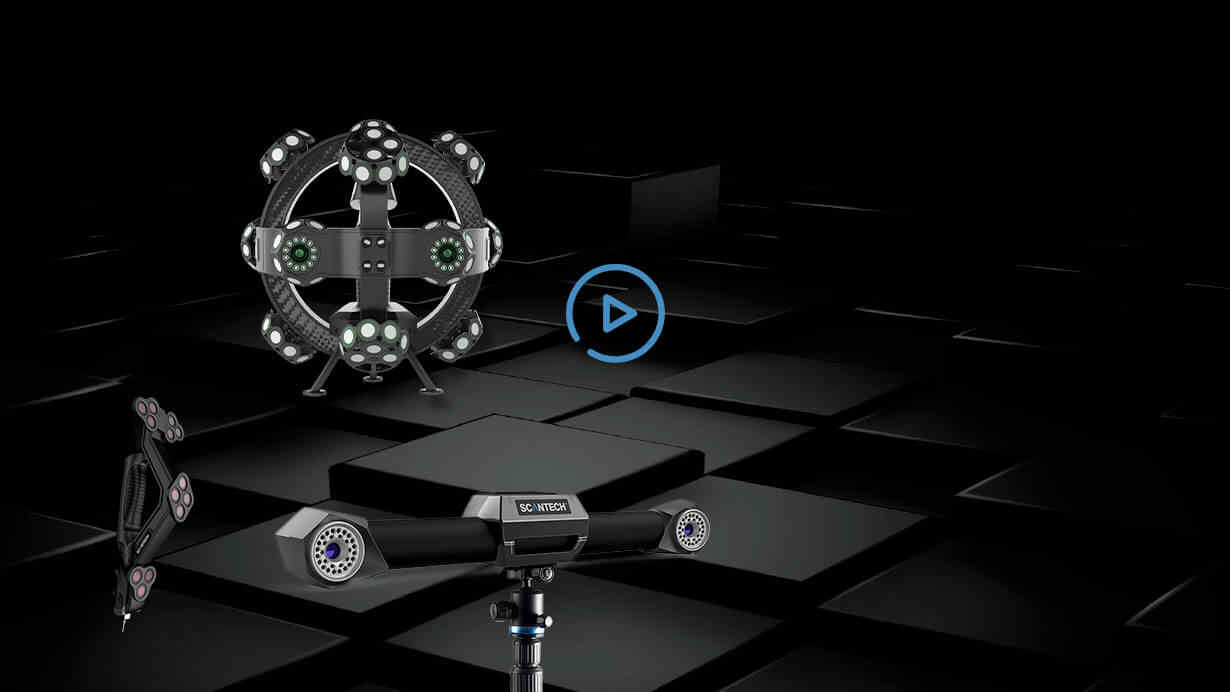

Our latest product, TrackScan-P42 3D system adopts intelligent optical tracking measurement technology and high-quality optical equipment.
11 crossed blue laser lines enable ultra-fast scanning rate of 1,200,000 measurements/s and smooth experience. 7 parallel blue laser lines work for detail capturing. Single blue laser line aims to fast obtain 3D data of deep holes and dead angle positions.
Easily capture 3D data for shiny and black surface; strong anti-interference capability of environment, vibrations and thermal variations.
Portable CMM is designed for getting precise 3D data of holes and hidden points, with high single point repeatability of 0.030 mm.
Ready To Get Started?
Rebuild our 3D world with the most advanced 3D scanning system available.
Technical Specifications
Technical specification
| Type | TrackScan-P30 | |||
|---|---|---|---|---|
| Scan mode | Ultra-fast scanning | 11 blue laser crosses | ||
| Hyperfine mode B | 7 blue parallel laser lines | |||
| Deep hole scanning | 1 extra blue laser line | |||
| Laser lines in total | 30 | |||
| Accuracy | 0.025 mm | |||
| Measurement rate | 1,200,000 measurements/s | |||
| Scanning area | 310 mm x 350 mm | |||
| Laser class | ClassⅡ (eye-safe) | |||
| Resolution | 0.020 mm | |||
| Volumetric accuracy | 9.1 m³ | 0.064 mm | ||
| 16.6 m³ | 0.078 mm | |||
| Volumetric accuracy (With MSCAN-L15 photogrammetry system ) |
0.044 mm + 0.015 mm/m | |||
| Portable CMM | Optional | Support | ||
| Single point repeatability | 0.030 mm | |||
| Part size range (recommended) | 200 ~ 6000 mm | |||
| Stand-off distance | 300 mm | |||
| Depth of field | 320 mm | |||
| Output formats | .stl, .ply, .obj, .igs, wrl, .xyz, .dae, .fbx, .ma, .asc or customized | |||
| Operating temperature range | -10 ~ 40 °C | |||
| Interface mode | USB 3.0 | |||
| Patents | CN204329903U, CN104501740B, CN104165600B, CN204988183U, CN204854633U, CN204944431U, CN204902788U, CN105068384B, CN105049664B, CN204902784U, CN204963812U, CN204902785U, CN204902790U, CN106403845B, CN209197685U, CN209263911U, CN106500627B, CN106500628B, CN206132003U, CN211121096U, US10309770B2, KR102096806B1 | |||
