Precision casting is an advanced technology in machinery manufacturing. And the deviation comparison between casting and mold is very critical.

What does customer need?

Although manufacturing is based on drawings, there are still many deviations, besides, castings are complicated and irregular in shape. Hence, customer needs an effective inspection method delivering high-precision and time-saving, so that the comparison results can completely reflect the deviations and specified geometric tolerancing.

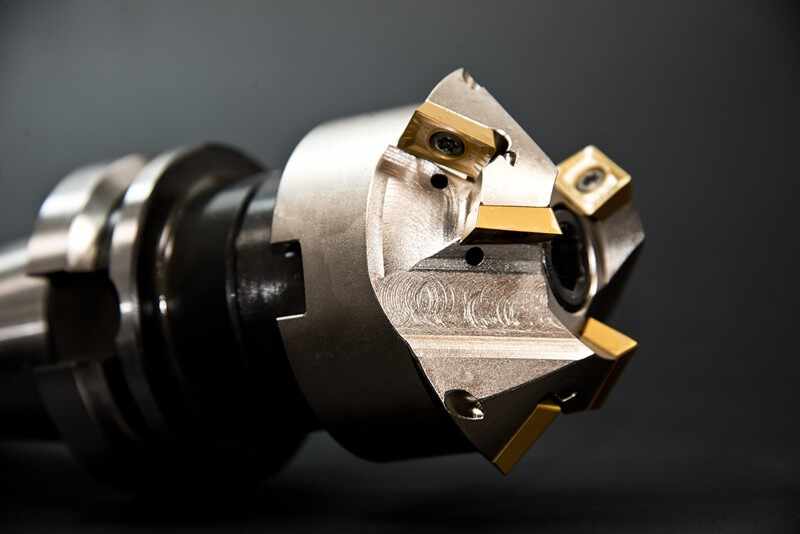

Machinery manufacturing

Traditional inspection method, however, is hard to precisely get deviations for complex castings and mold. Therefore, 3D inspection with high accuracy helps a lot in machinery manufacturing.

ScanTech solution

ScanTech handheld 3D scanner HSCAN331 can easily handle this, combining with professional inspection software to make data analysis.

ScanTech handheld 3D scanner HSCAN331

1. Scanning procedures

●  Attaching stick mark points

● Inspecting casting and mold with HSCAN331

● 3D inspection analysis

● Optimize casting’s shape

2. Casting rod

● Attaching stick mark points: 3 minutes

●  Scanning: 5 minutes (resolution is 0.6mm)

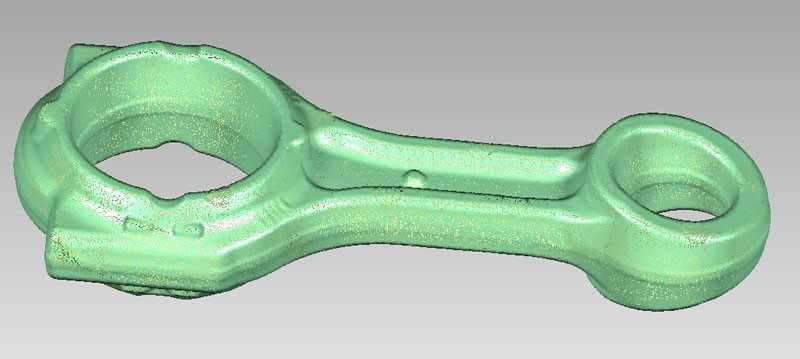

Casting rod point cloud data
Casting rod point cloud data

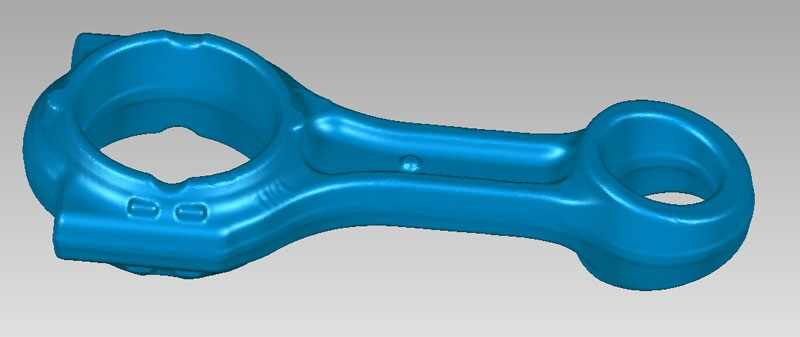

Casting rod stl 3D data
Casting rod stl 3D data

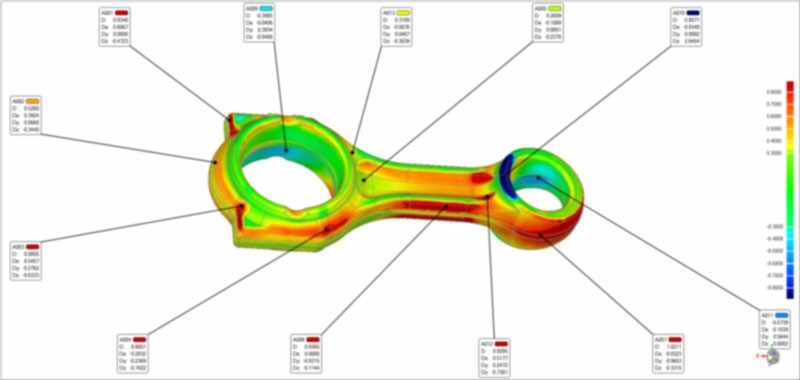

Contrast detection of casting rod and data mold
Contrast detection of casting rod and data mold

3. Casting piston

●  Attaching markers: 2 minutes
●  Scanning: 4 minutes (resolution is 0.6mm)

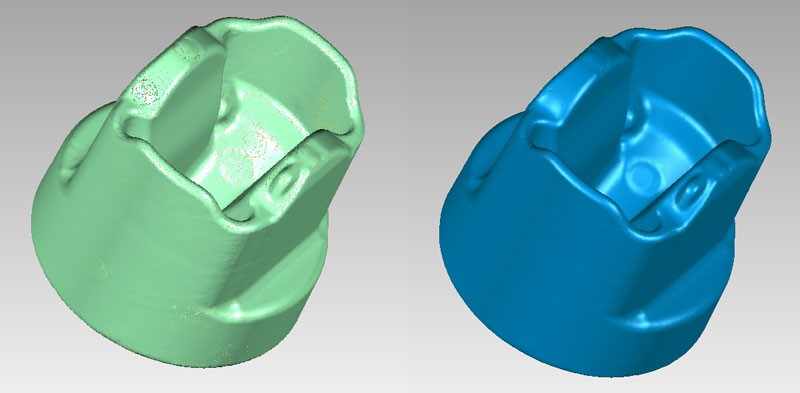

Point cloud and 3D stl data
Point cloud and 3D stl data
Contrast detection of casting rod and data mold

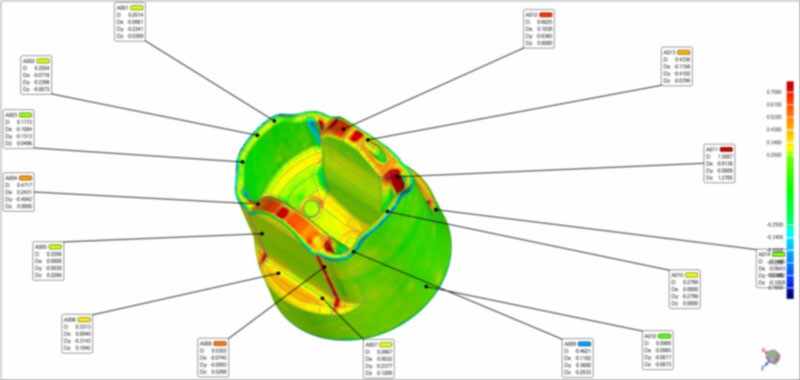

Contrast detection of piston and data mold

4. Concave mold

● Attaching markers: 3 minutes

● Scanning: 5 minutes (resolution is 0.6mm)

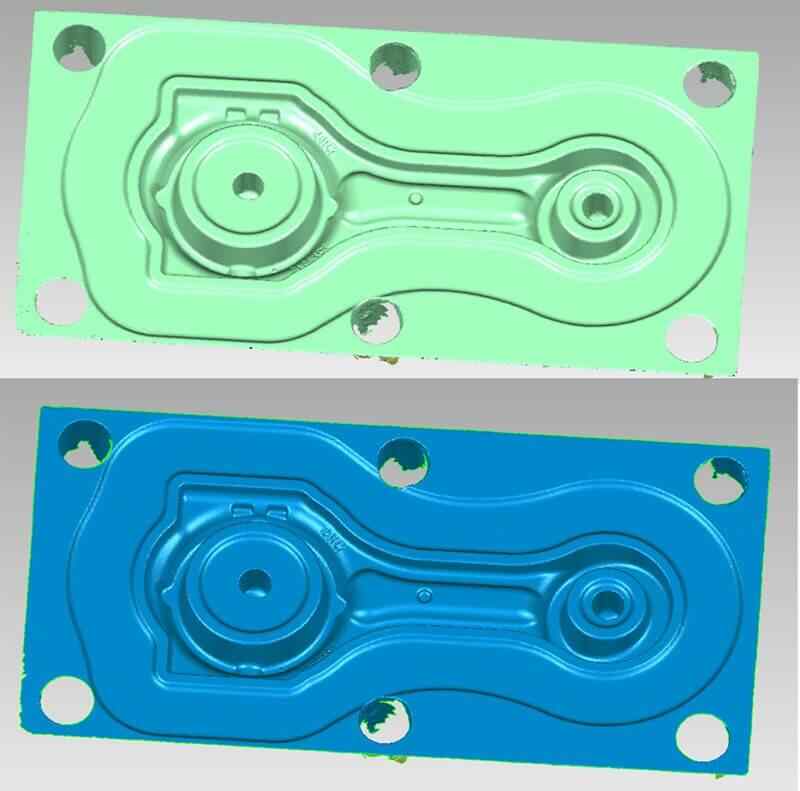

Point cloud and 3D stl data
Point cloud and 3D stl data

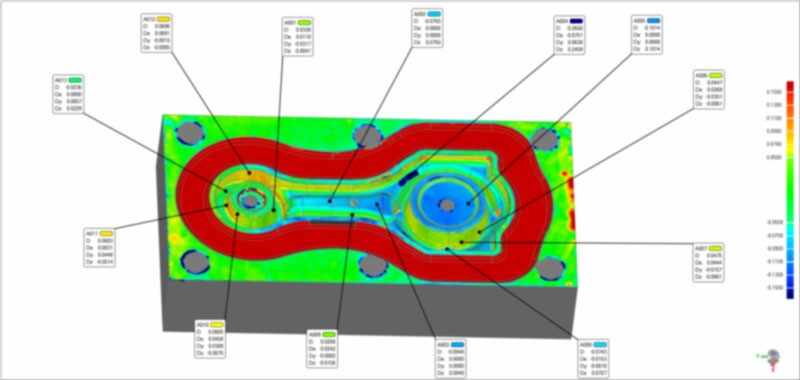

Contrast detection between piston and dada mold
Contrast detection between piston and dada mold

5. Geometric tolerancing measurement

Standard (data mold) geometric tolerancing data
Standard (data mold) geometric tolerancing data

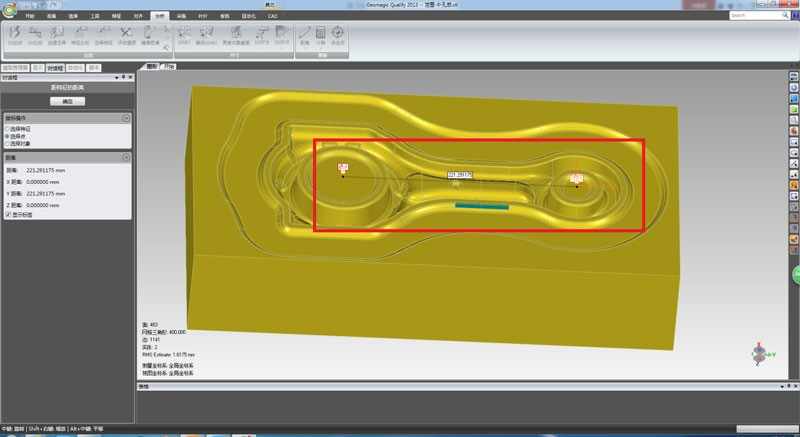

Geometric tolerancing data by using HSCAN331
Geometric tolerancing data by using HSCAN331

3D inspection for irregular castings solved customers’ requirements in deviations and shape modification. ScanTech handheld 3D laser scanner HSCAN greatly enhances work efficiency and offers excellent solutions for machinery manufacturing.
